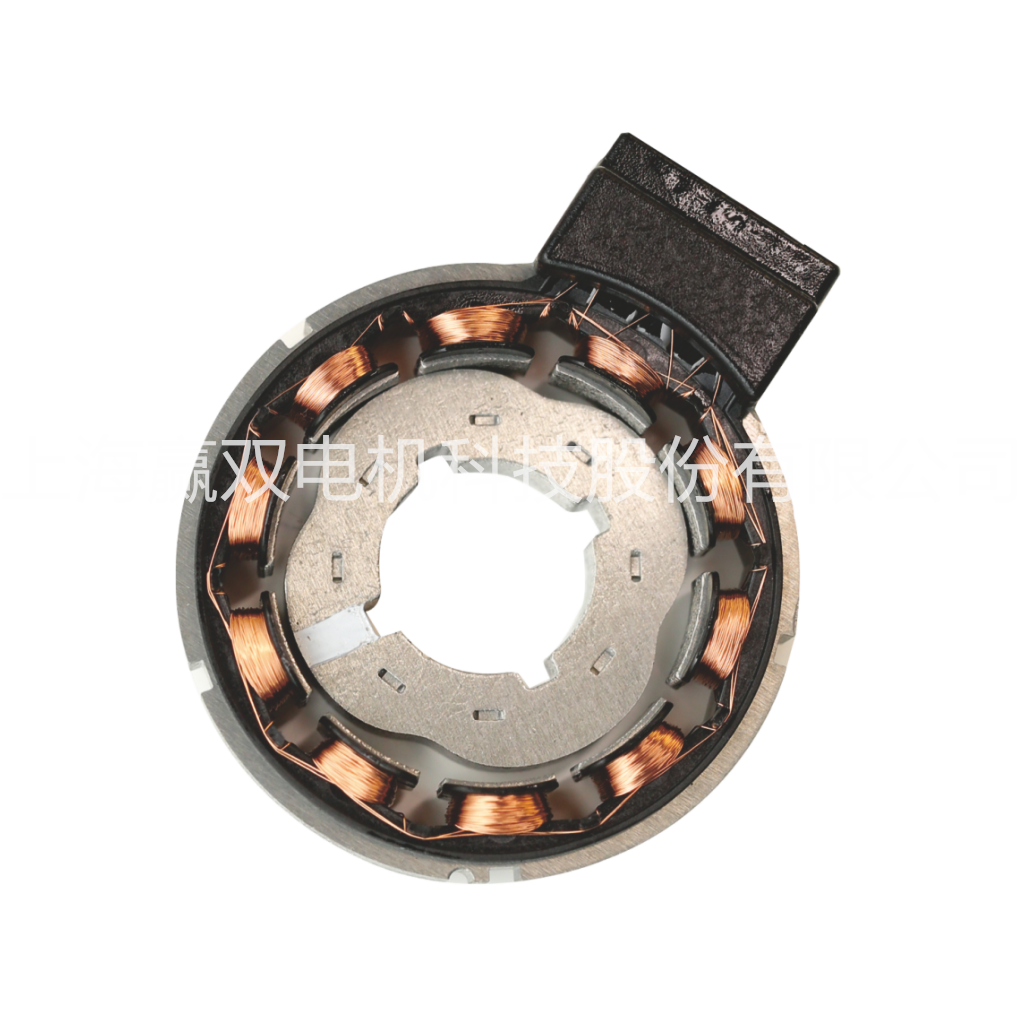

VR resolver J52XU9733B
Product model:VR resolver J52XU9733B
Application scenario:hybrid electric vehicle, pure electric vehicle system
Product details consultation
* There may be multiple versions of products of the same model, and different versions of products will be different (including functional parameters, logo design, appearance details, product data, etc.), please take the real object as the standard. It is recommended that you consult in detail about the specific version you will purchase before purchase.
Description
Parameter

Pole of pairs: 3 pairs

Input voltage: 7V (RMS)

Input frequency: 10kHz

Input impedance: (120 ± 18) Ω

Transformation ratio: 0.285 ± 10%

Accuracy: ≤± 40 ′

Phase shift: ≤ 8.6 °

Residual voltage: 20mV

Temperature range: (- 50 ~ + 155) ℃

As a built-in structure, ultra-thin size realizes ultra-thin design and assembly.

Allowable working temperature range: - 55 ℃ ~ + 155 ℃

High protection grade, resistant to vibration and impact

High rotation speeds up to 60000 rpm

High reliability because it adopts a structure similar to that of the motor, but because the rotor has no winding, it has high reliability.

Low cost greatly reduces the cost of rotary transformer by reducing the number of components.

Scope of application: hybrid electric vehicle, pure electric vehicle system.
